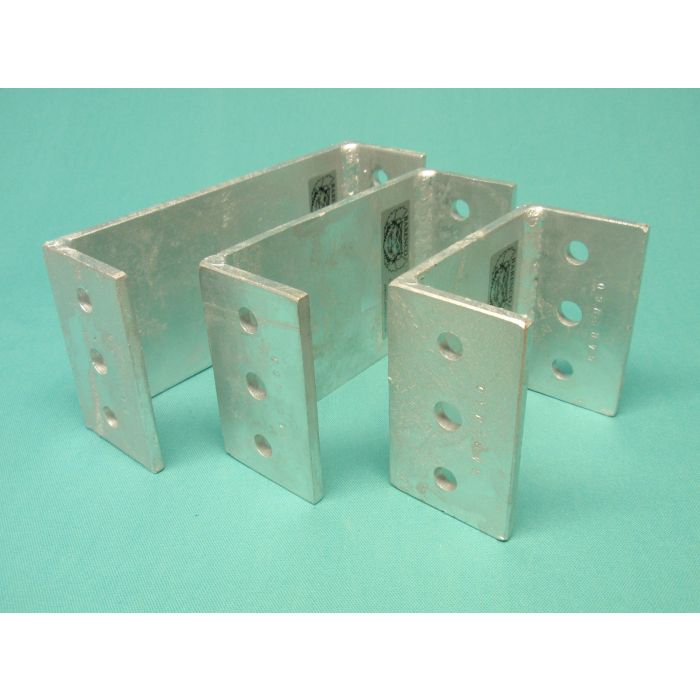

Channel Brackets 4", 6", & 8" Clearance
Wall bracket for mast which is required to clear very small or no overhang or Pole to Pole spacing of 4” (100mm), 6” (150mm) & 8” (200mm) as selected.
Designed and Manufactured by BARENCO
Wall bracket for mast which is required to clear very small or no overhang or Pole to Pole spacing of 4” (100mm), 6” (150mm) & 8” (200mm) as selected.
Wall fixing can be with either 1 x 13mm hole in centre of plate or 2 x 11mm holes 63mm on the centre line.
Drilled to take 1 x BE915 ‘V’ or BE953 ‘U’ bolt and requires only a single centre fixing perbracket.
Wall fixings recommended are Order Code : BE917/10 and BE917/12 for single fixing
If a larger overhang needs extra clearance then 2 brackets can be bolted together to increase clearance.
2” ‘V’ Bolts Order Code : BE915 (V Bolts Sold Separately)
or
2” ‘U’ Bolts Order Code : BE953 (U Bolts Sold Separately)
Both end frames are drilled identically so this bracket can be used to connect two poles together with the relevant spacing.
Finish : Sherardized
Designed and Manufactured by BARENCO
| SKU | Channel Brackets |
|---|
